External artifact show page

Updated:2024-12-12 SBOM Central

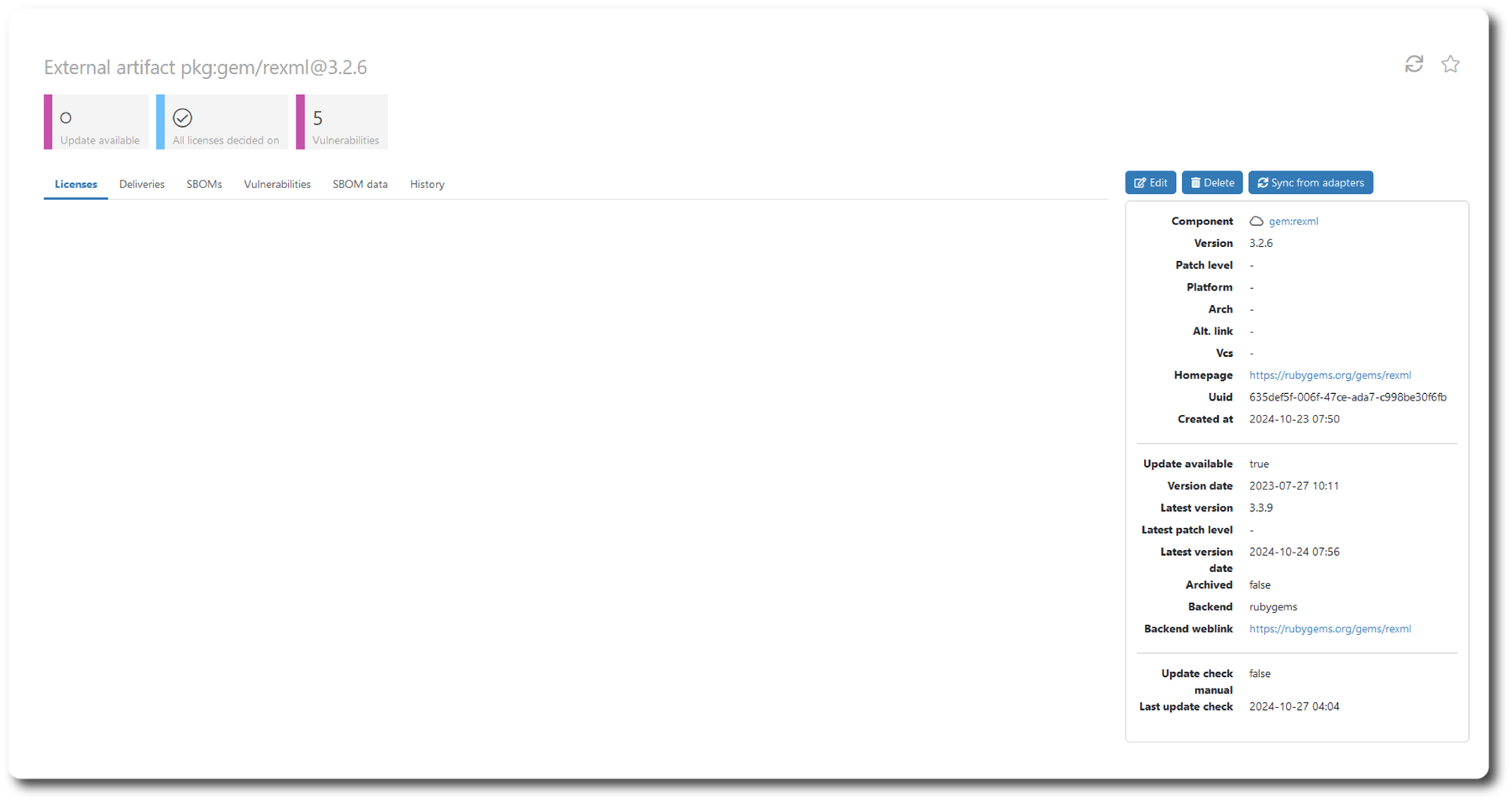

The External artifact show page contains information and references related to one specific artifact and version.

The page has four main areas:

  1. Identity and version of the artifact.
  2. Top boxes with highlighted data.
  3. Tabs row and unique content for each tab.
    1. Licenses tab.
    2. Deliveries tab.
    3. SBOMs tab.
    4. Vulnerabilities tab.
    5. SBOM data tab.
    6. History tab.
  4. Information box with Buttons

Top boxes

Color coded status boxes:

Box Description
Status Up-to-date/Update available/No update data
Decision License approval/disapproval/not handled
Vulnerabilities Number of vulnerabilities published for the artifact.

Colors:

  • Light blue : Ok
  • Purple : Update available/Licenses to manage
  • Grey : No data


Tabs

Name Description
Licenses License information for this artifact.
Deliveries Deliveries where this artifact is included.
SBOMs SBOMs where this artifact is included.
Vulnerabilities List of vulnerabilities identified for this artifact.
SBOM data Shows SBOM header data
History A list of manual changes in MAIA WebApp related to this artifact.


Information box

Parameters

  • Component: Name of the artifact/component and a link to the core component page.
  • Version: Version of the component.
  • Patch level: Patch level for current artifact.
  • Platform: Specification of current execution platform.
  • Arch: Architecture.
  • Alt. link: A manually added link to the component source. This link supersedes the Weblink and will not be overwritten when updating the component.
  • Vcs: link (address) to the component repository.
  • Homepage: Link (address) to the component source.
  • Uuid: Universally unique identifier created for this component.
  • Created at: Date of creation in SBOM Central.
  • Update available: true/false.
  • Version date: Date of the release of current version.
  • Latest version: The latest version available at the source address for this component.
  • Latest patch level: Patch level of latest version.
  • Latest version date: Date of the release of latest version.
  • Archived: If project is set to archived at the component source.
  • Backend: Backend service for retrieved data.
  • Backend weblink: Link (address) used to retrieve data.
  • Update check manual: True=Automated check of updates is disabled.
  • Last update check: Last time MAIA checked the update status.


Buttons

Button visibility may depend on your current privileges.

Edit button

To edit data for the artifact i.e. for the specific version of the component. About editing data for all versions, read about editing component data.


Delete button

Delete the artifact.


Sync from adapters-button

Synchronize and update the artifact data with SBOM Central Information services.
